Product overview

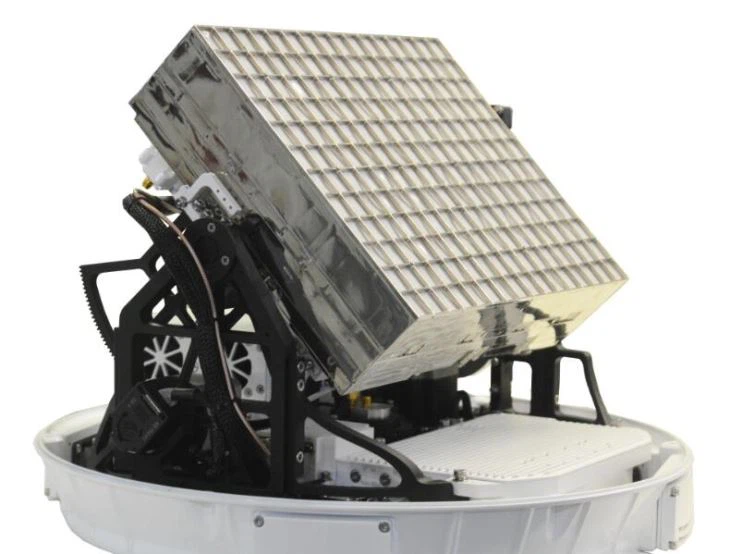

0.3m Ku Frequency Band Vehicle-Borne Plate SOTM antenna is an important component of vehicle-borne station of satellite communication in motion. The system integrates the navigation sensor, signal strength tracking module, and the GPS data to allow the automatic tracking to the satellite during the motion of vehicle, then establish the continuous and reliable satellite communication connection. Therefore, it facilitates the vehicle-borne station of SOTM antenna to carry out the VOIP voice, fax and low-speed data transmission with other fixed stations and mobile stations.
Performance Parameters Table
|
ANTENNA PARAMETERS |
||
|
Working Frequency Band |
Reception |
12.25GHz ~ 12.75GHz |
|
Transmission |
14.0GHz ~ 14.5GHz |
|
|
Antenna Gain |
Reception |
≥29.5dBi@12.5GHz |
|
Transmission |
≥30.5dBi@14.25GHz |
|
|
Polarization Mode |
Linear polarization(Automatic adjustment) |
|
|
EIRP Value |
≥37.4dBW@14.25GHz, BUC6W |
|
|
G/T Value |
≥7.9dB/K@12.5GHz, 20°EL |
|
|
Antenna Type |
Plate array antenna |
|
|
Antenna Caliber |
Equivalent 0.3m |
|
|
TRACKING PARAMETERS |
||
|
Port Isolation |
≥85dB |
|
|
Cross Polarization Isolation |
≥25dB |
|
|
Base Model |
Biaxial stabilization |
|
|
Range of Antenna Motion |
Azimuth |
360° (Continuous rotation) |
|
Pitch |
10° ~ 85° |
|
|
Polarization |
≥180° |
|
|
Tracking Accuracy |
≤0.2° (R.M.S) |
|
|
Initial Searching Time |
≤120s |
|
|
Reacquisition Time |
≤5s (Cover@10min) |
|
|
SYSTEM PARAMETERS |
|
|
Working Power Supply |
24V DC or 220/110V AC |
|
BUC Optional |
3W/6W/8W/10W (Built-in) |
|
Power Consumption |
≤200W (Including power amplifier) |
|
OPERATION ENVIRONMENT |
|
|
Working Temperature |
-40°C ~ +55°C |
|
Storage Temperature |
-40°C ~ +70°C |
|
Working Humidity |
0% ~ 95% |
|
OTHERS |
|
|
ACU Cabinet Dimension |
1U |
|
Weight |
14.5kg |
|
Overall Dimension |
Φ410mm*H320mm |
Applications :
● It can be used for government emergent measures.
● 0.3m Ku Frequency Band Vehicle-Borne Plate SOTM antenna is the main force of emergency communication because of its low operating cost and flexible scheduling.
